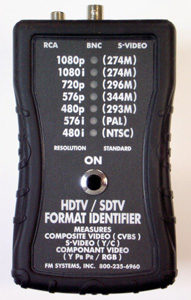

TFI-7 METER TV FORMAT IDENTIFIER FINDS USE IN BROADCAST TV
The TFI-7 is a hand-held HDTV / SDTV format identifier meter used to identify the picture format of any HDTV, EDTV and SDTV video signal. With the push of a button this pocket sized hand-held meter measures and displays the video format of component (YPbPr), (RGB), composite (CVBS) and S-VIDEO (Y/C) video inputs. Simply connect a video source or any sync source to the input connector and push the button to measure the format. This can also be used with any black level sync output source to measure the output format of other types of signals. The TFI-7 meter displays the following formats. HDTV EDTV SDTV
1080i (SMPTE 274M) 480p (ITU-R BT.1358)NTSC (SMPTE 170M)1080p (SMPTE 274M) 576p (ITU-R BT.1358)PAL (ITU-R BT.470)1080PsF (SMPTE RP 211) 480i (SMPTE 267M)720p (SMPTE 296M) 576i (ITU-R BT.601)
The meter is equipped with three input connectors, a BNC female, an RCA female, and a female S-VIDEO type connector to input the video signal. The battery compartment door allows easy access to the 9 Volt battery that powers the device. The comfort grip hand-held case is made of flame retardant ABS plastic with a flame rating of 94-5VA. The meter comes with an impact resistant rubber boot to protect it during daily use.
