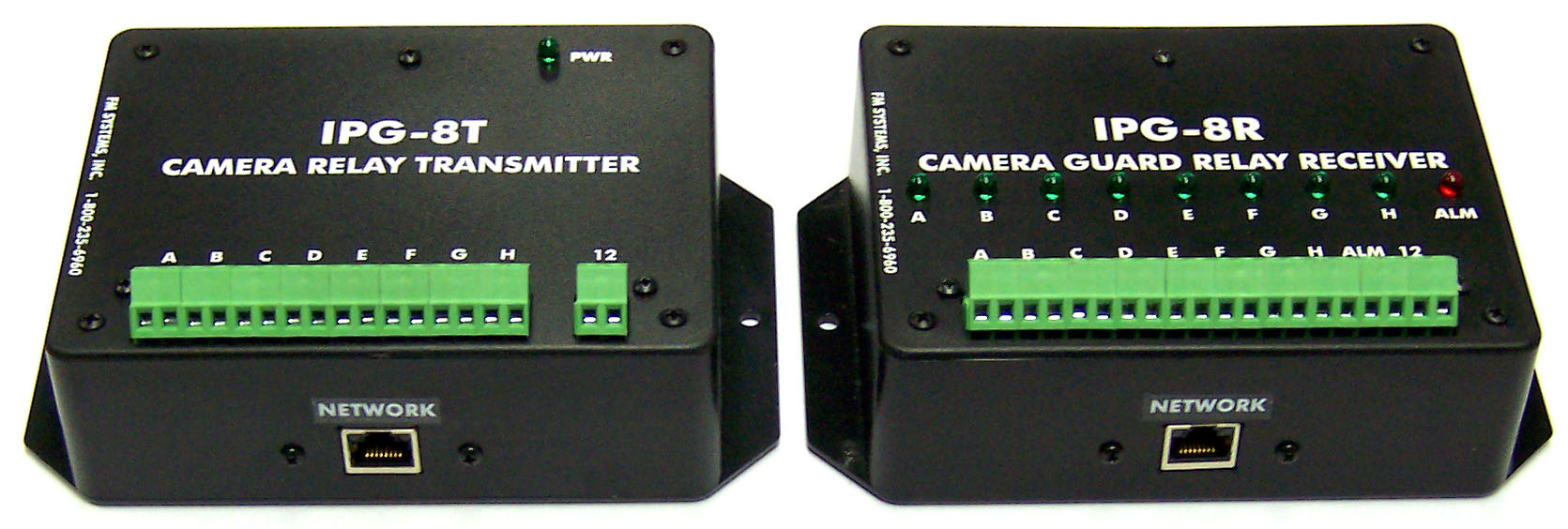

IPG-8T/IPG-8R IP NETWORK SWITCH CONTACT RELAY TRANSMITTER/RECEIVER SET

$870.00

The IPG-8T Relay Contact transmitter monitors 8 separate switch contact input signals and sends the status of each switch input via an embedded device server to a matching relay output receiver placed anywhere on the network. Use this unit when you want to send contact switch or relay information over a LAN Local Area Network or on a wireless network transmission path back to a receiver. This contact relay over network system can be used to relay alarm contacts or remote control signals for industrial applications.

The IPG-8T continuously monitors the input switch contact condition of 8 channels A-D and sends a data stream via the network connection to the receiver IPG-8R unit. This unit uses a standard 8P8C network cable for connection onto any LAN or network system. The signals generated will go anywhere on a network using TCP/IP protocol.

The embedded device server uses 10/100Mbit Ethernet protocol, auto sensing, stable, field proven TCP/IP protocol, easy configuration through a web interface or by direct Ethernet cable connection, Password Protection capable and Bi-Color LED indicators for Link status, speed, and activity.

The IPG-8T transmitter can be used on a wireless link to return the contact information to another location to control the relay outputs. This unit will work with any network capable of carrying TCP/IP protocol.

The IPG-8T has an easy mounting flange that will mount to any surface with just two screws and is supplied with a 12 VDC power cube. This unit does not use P.O.E. Power Over Ethernet on the network connector, it is powered by a 12 VDC power cube. This unit is designed to be used with the matching 8 channel receiver called IPG-8R.

Available on backorder

Description

Download IPG-8T Specifications
Download IPG-8R Specifications
Download Instruction Manual
Download Related Article
Download Related Article

Part Number: IPG-8T/IPG-8R
Title: 4 CHANNEL IP VIDEO NETWORK SWITCH CONTACT RELAY (SET)
Category: Digital Products
Industry: CCTV/Security

            The IPG-8T Relay Contact transmitter monitors 8 separate switch contact input signals and sends the status of each switch input via an embedded device server to a matching relay output receiver placed anywhere on the network. Use this unit when you want to send contact switch or relay information over a LAN Local Area Network or on a wireless network transmission path back to a receiver. This contact relay over network system can be used to relay alarm contacts or remote control signals for industrial applications.

            The IPG-8T continuously monitors the input switch contact condition of 8 channels A-D and sends a data stream via the network connection to the receiver IPG-8R unit. This unit uses a standard 8P8C network cable for connection onto any LAN or network system. The signals generated will go anywhere on a network using TCP/IP protocol.

            The embedded device server uses 10/100Mbit Ethernet protocol, auto sensing, stable, field proven TCP/IP protocol, easy configuration through a web interface or by direct Ethernet cable connection, Password Protection capable and Bi-Color LED indicators for Link status, speed, and activity.

            The IPG-8T transmitter can be used on a wireless link to return the contact information to another location to control the relay outputs. This unit will work with any network capable of carrying TCP/IP protocol.

            The IPG-8T has an easy mounting flange that will mount to any surface with just two screws and is supplied with a 12 VDC power cube. This unit does not use P.O.E. Power Over Ethernet on the network connector, it is powered by a 12 VDC power cube. This unit is designed to be used with the matching 8 channel receiver called IPG-8R.

If this product page shows “out of stock” the product is in production and can be purchased with a lead time of 1-2 weeks or less depending on quantity. To place an order for this product call 1-800-235-6960 and ask for the sales department. Or E-Mail your order to fmsystemsinc@sbcglobal.net. Most orders ship within a few days.



Additional information

Weight 8 lbs
Dimensions 12 × 12 × 7 in
