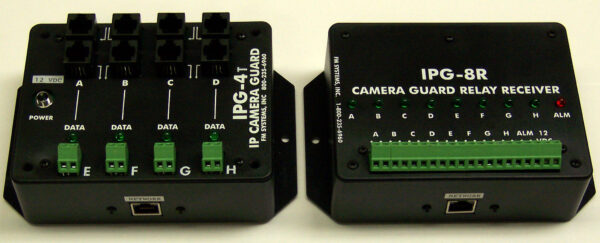

Part Number: IPG-4T/IPG-8R
Title: 4CHANNEL IP VIDEO NETWORK CAMERA GUARD RELAY (SET)
Category: Digital Products
The IPG-4T Camera Guard monitors the communication path on four separate IP camera signals and sends the communication status of each IP camera via an embedded device server to a matching relay output receiver placed anywhere on the network. Use this unit when you have multiple cameras feeding into a network switch and one cable or wireless transmission back to the control point with no other wires to use for control. This supervisory system will identify the loss of any IP video data signal due to removal of the camera, loss of power to the camera, a camera cable disconnect, or a defective camera output.
The IPG-4T continuously displays the “Data on” condition of 4 IP cameras with individual L.E.D. indicators for each of the camera channels A-D. The unit also has 4 input screw terminals to use with an additional standard IPG-4 unit to expand the system for up to 8 monitored IP channels. The axillary channel inputs E-H are for contact switches and will take any kind of switch or relay inputs. Use it to monitor your IP cameras and shut down un-attended gas pumps if the IP camera is tampered with or fails. This unit uses a standard 8P8C network cable to put the IP video loss information onto the network for recovery at the far end near the pump controls. The signals generated will go anywhere on the Ethernet network using TCP/IP protocol.
The embedded device server uses 10/100Mbit Ethernet protocol, auto sensing, stable, field proven TCP/IP protocol, easy configuration through a web interface or by direct Ethernet cable connection, Password Protection capable and Bi-Color LED indicators for Link status, speed, and activity.
The IPG-4T will identify tampering or failure of cameras when it occurs, reducing the liability associated with extended and undetected loss of area security when cameras are rendered inoperative without notification. Then it will put the information out on the network for recovery at any other point on the network.
The IPG-4T Camera Guard can be connected anywhere between the camera and the Monitor equipment and you can then use an Ethernet connection or a wireless link to return the IP Loss signals to another location to shut down pumps or operated alarms. The “High Impedance Loop through Input” will not affect the data or picture quality of the IP video signal even if the power fails. The unit detects the loss of data communication between the IP camera and the network switch and sends IP loss data to a receiver at the other end of the network.
Use this unit in any IP video installation that requires guaranteed continuous video monitoring. Use the IPG-4T to monitor the cameras in sensitive areas like loading docks or any area subject to the unauthorized movement of product or to meet TSSA requirements.
The IPG-4T has an easy mounting flange that will mount to any surface with just two screws and is supplied with a 12 VDC power cube. This unit will pass all forms of P.O.E. Power Over Ethernet on the camera channels and does not use P.O.E. on the network connector. This unit is designed to be used with the matching 8 channel receiver called IPG-8R.
