HDFM-1 HD CAMERA FOCUS METER

$440.00

The HDFM-1 is a handheld camera focus meter you can use to set the maximum focus of any TVI, CVI High Definition cameras and any analog cameras without the need for a monitor or the subjective nature of “eyeballing” the cameras image on a small screen. Trying to see the maximum focus point of a High Definition image on a small test monitor in full sun light is all but impossible and leads to many HD cameras being set to less than the maximum focus point. This meter works by measuring the amount of information in the video frame as it varies with the focus adjustment.

Description

HDFM-1
Click here to download the manual in Word 6.0 format. Download Manual

Click here to download the manual in Word 6.0 format. Download “Bringing TVI,CVI and AHD Cameras into Focus” Article

Click here to download the manual in Word 6.0 format. Download Specification Sheet

HIGH DEFINITION CAMERA FOCUS METER

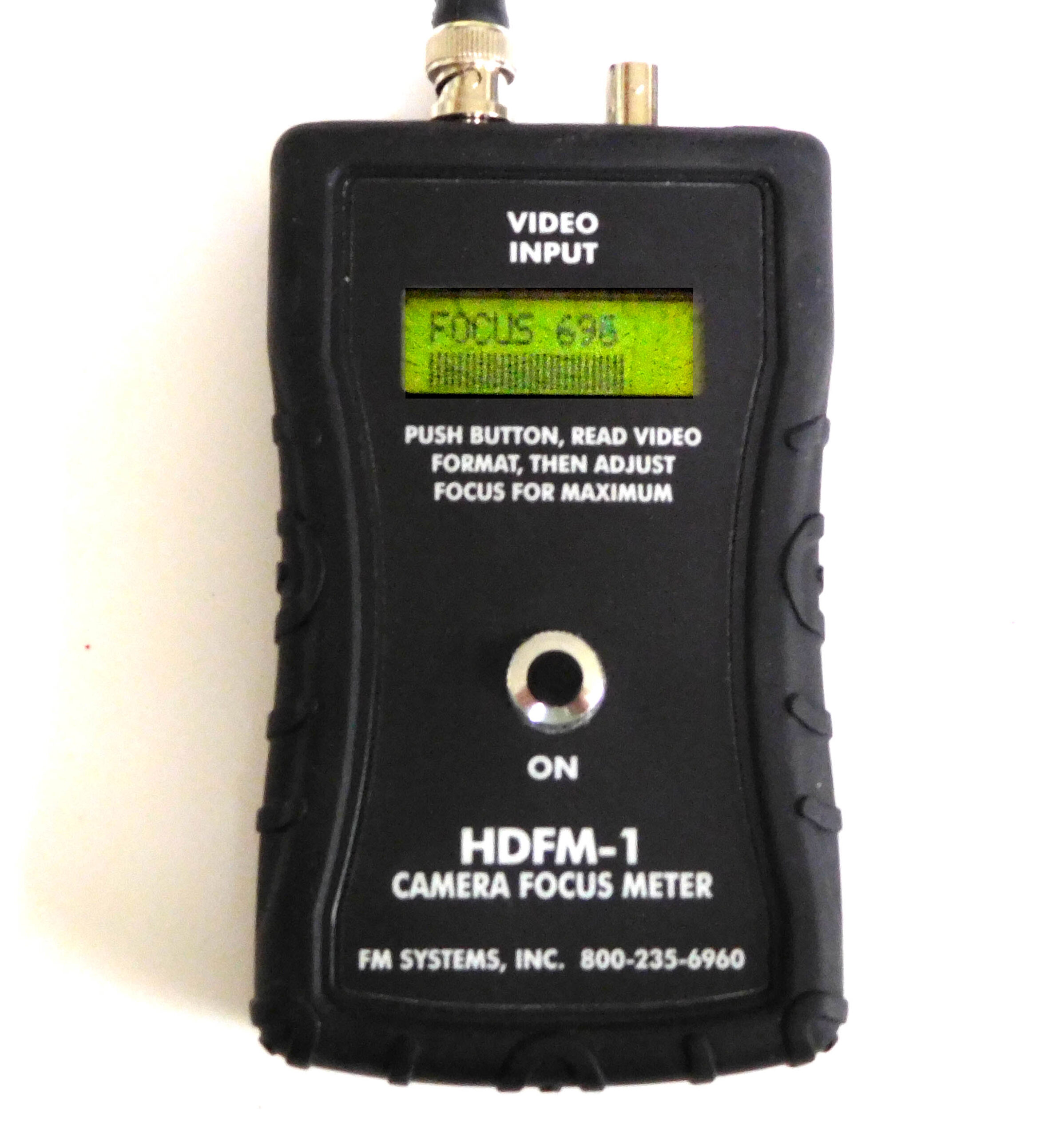

The HDFM-1 is a handheld camera focus meter you can use to set the maximum focus of any TVI, CVI High Definition cameras and any analog cameras without the need for a monitor or the subjective nature of “eyeballing” the cameras image on a small screen. Trying to see the maximum focus point of a High Definition image on a small test monitor in full sun light is all but impossible and leads to many HD cameras being set to less than the maximum focus point. This meter works by measuring the amount of information in the video frame as it varies with the focus adjustment. As you adjust the camera focus to make a sharper image, the information in the scene increases and so does the numeric reading on the meter. To get the maximum focus on any camera the installer connects the meter to the output of the camera and adjusts the focus ring on the camera for a maximum reading on the meter to get the maximum High Definition advantage from every camera you install. All scenes will have a different number because the information in the scene is different, but the maximum reading on the meter will always be the maximum focus point for the camera. The two line LCD displays the focus reading with a 36 point Bar Graph for course adjustment and a numeric display for the fine adjustment. The LCD display has a backlight feature so you can even use it in the dark.

This meter will also identify the video format and number of lines of definition of any TVI, CVI or analog video signal. When connected to a video signal it first identifies the format and Lines of definition of the video signal and briefly displays that information on the LCD display, then it goes into focus mode so you can set the maximum focus on the camera. The ability to measure the video format and lines of definition can help you identify and verify any unfamiliar camera you come across in your work. With the multi-format cameras and DVRs available today it is easy to identify the output they are set to which could save you a lot of time troubleshooting miss-matched video formats on the job. It will measure the format of video signals like HD-TVI, HD-CVI, AHD, CVBS, YPbPr, RGB, and any composite analog video signal.

The HDFM-1 has a comfort grip hand-held case made of flame retardant ABS plastic with a flame rating of 94-5VA. A battery compartment door allows easy access to the 9-Volt battery that powers the device. The meter comes with an impact resistant rubber boot to protect it during daily use. This meter uses a “battery check” system to monitor the battery condition and the LCD display lets you know when it is time to change the battery.

If this product page shows “out of stock” the product is in production and can be purchased with a lead time of 1-2 weeks or less depending on quantity. To place an order for this product call 1-800-235-6960 and ask for the sales department. Or E-Mail your order to fmsystemsinc@sbcglobal.net. Most orders ship within a few days.



FEATURES                                    SPECIFICATIONS

Input Video Formats                                  1080I               SMPTE 274M

1080P              SMPTE 274M

1080Psf           SMPTE RP 211

1080P              HD-TVI, HD-CVI & AHD all versions

720P                SMPTE 296M

720P                HD-TVI, HD-CVI & AHD all versions

576I                 ITU-R BT.601 (PAL)

576P                ITU-R BT.1358

480I                 SMPTE 170M (NTSC)

480P                ITU-R BT.1358

Input Connectors                                            2 BNC Female (Loop Through)

Input Impedance                                             20 K Ohms (High-Z)

Focus Range                                                   60 Point Bar Graph (course) & 0-1023 Numeric (Fine)

Display                                                            2 X 12 Numeric LCD with 36 Point Easy Bar Graph

Battery                                                            9 Volt Standard

Dimensions                                                     3.250″ X 6.00″ X 1.00″

Material                                                           ABS 94-5VA rated with Impact Resistant Rubber Boot

This product is available for purchase from FM SYSTEMS, INC. at: 800-235-6960. Call to place your order today and start getting the maximum focus and the sharpest image from all of your cameras.

Want see all of our video test products go to our website at; www.fmsystems-inc.com and look at products/test equipment. If you have any questions please call us at: 800-235-6960 or E-Mail us at fmsystemsinc@sbcglobal.net.
