GB464 Ground-Loop Blocker Amplifier

$460.00

Ground-Loop Blocker Amplifier

Download Specifications
Download Instruction Manual
Download Related Article
Download Related Article

Part Number: GB464
Title: Ground-Loop Blocker Amplifier
Category: CCTV Products
Industry: CCTV/Security,

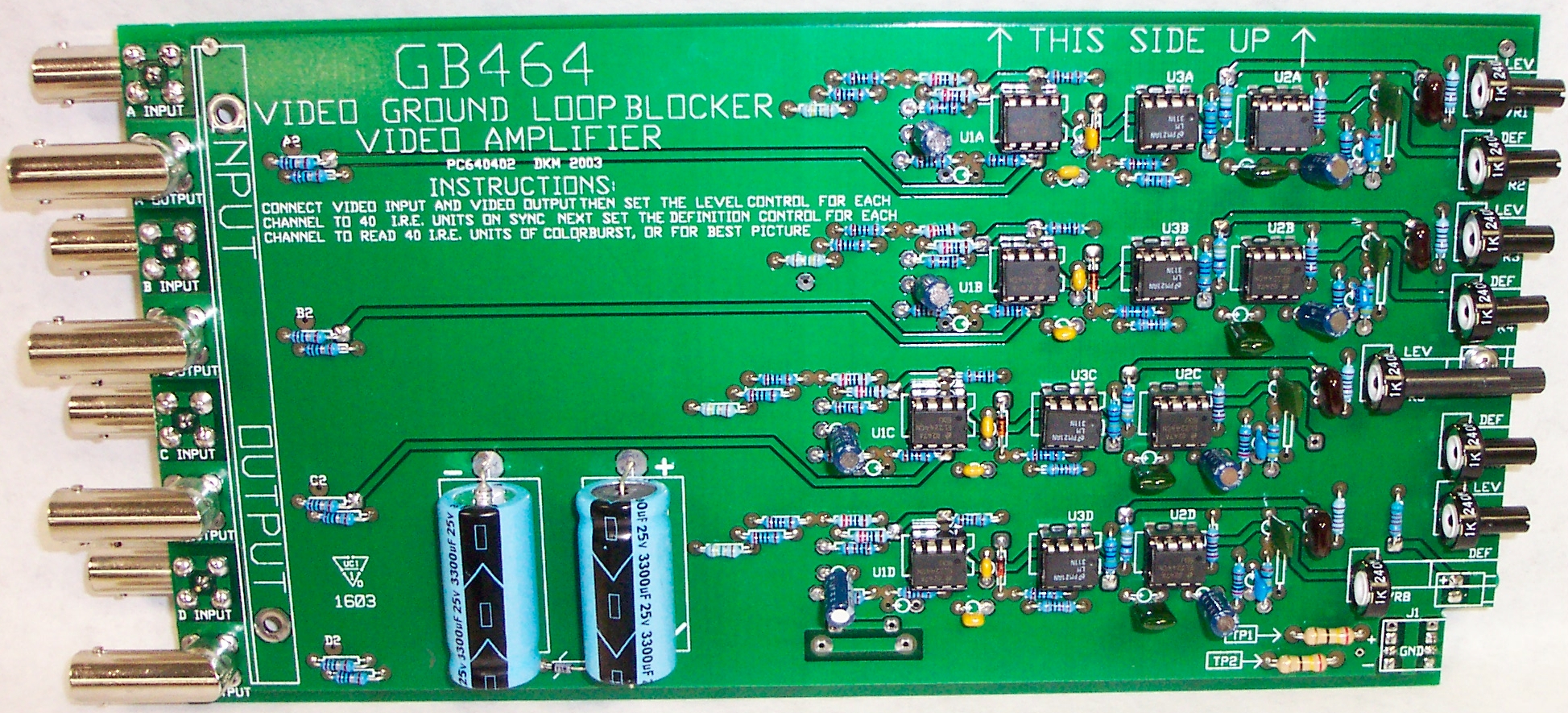

The GB464 Ground-Loop Blocker is an active device used to eliminate Ground Loop Interference and picture quality problems in new and existing CCTV video installations. The unit is installed at the monitor site where the CCTV signals come together, or at any intermediate point where video signals are monitored.

Available on backorder

Description

Ground-Loop Blocker Amplifier
Download Specifications
Download Instruction Manual
Download Related Article
Download Related Article

Part Number: GB464
Title: Ground-Loop Blocker Amplifier
Category: CCTV Products
Industry: CCTV/Security,

The GB464 Ground-Loop Blocker is an active device used to eliminate Ground Loop Interference and picture quality problems in new and existing CCTV or video installations. The unit is installed at the monitor site where the CCTV signals come together, or at any intermediate point where video signals are monitored. The GB464 operates with any standard CCTV, NTSC or PAL video signal. This device controls and corrects four channels of CCTV video, each channel is separately adjustable for Video Level and Picture Sharpness. A built-in active ground loop blocker removes the 60 Cycle Bars from the CCTV signal even after they have become part of the video signal. This ground loop isolator will prevent 60 Cycle “Hum Bars” from degrading your CCTV system at time of installation and beyond. The Level control can be adjusted to overcome losses due to long cable runs up to 3000 feet, poor cable quality, and improper video terminations. Cable runs can be extended beyond 3000 feet by placing additional GB464’s at intermediate locations. The Picture Sharpness control can be used to restore Picture quality to its original sharpness due to long cable runs, poor quality coaxial cable, kinked or damaged coaxial cable or twisted pair “Balun” transmission installations. It will also restore the video color-burst on a color camera to improve color camera operation on long cable runs. This device will prevent Ghosting in the picture by absorbing and eliminating the reflected video Ghost signal. It will also restore the Characteristic Impedance of the down stream video signal to prevent secondary Ghosting in the picture. GB464 GROUND-LOOP BLOCKER AMPLIFIER An optional secondary video distribution output can be ordered (GB464/D). This lets the installer add an extra monitor point or drive any other video equipment without affecting the original video signal. By installing the GB464 in your existing CCTV system you can avoid the many hours of troubleshooting and trial/error associated with problem installations. For some installations you will find it advantageous to install a GB464 on each group of four channels. It is especially useful in installations requiring lightning protection. Lightening protection devices often induce 60 cycle bars into the video signal because they use a connection to ground that does not equal the video ground at the monitor point. INPUT SPECIFICATION Level 1 Volt Peak/Peak Nominal Impedance 75 Ohms Video Standard CCTV, NTSC, PAL Connectors BNC (Female) Channels 4 Channels (A-D) Power Requirements +/- 12 VDC (RMS-400 Card Cage) Current 100 mA Card-Cage Requirements RMS-400 Power Supply & Mainframe PROCESSING Clamping Tip of SYNC Common Mode Rejection 40 dB Minimum 60Hz Rejection 2 Volts Peak/Peak Minimum Video Gain -3 to +4 dB High Frequency Compensation 0 to +16 dB RF Bandwidth 30 MHz OUTPUT Level 1 Volt Peak/Peak Impedance 75 Ohms Connectors BNC (Female) Channels 4 Channels (A-D) Distribution Out (optional) 4 Channels (E-H) Signal to Noise Ratio 70dB MECHANICAL Size 1.00″ W X 4.87″ H X 10.00″ L Temperature Range 0 – 50 Degrees Centigrade Humidity 95% Non-Condensing RMS-400 REQUIRED CARD-CAGE Card Slots 9 Slots Power Requirement 24VAC 100mA Each

If this product page shows “out of stock” the product is in production and can be purchased with a lead time of 1-2 weeks or less depending on quantity. To place an order for this product call 1-800-235-6960 and ask for the sales department. Or E-Mail your order to fmsystemsinc@sbcglobal.net. Most orders ship within a few days.

.



Additional information

Weight 3 lbs
Dimensions 12 × 12 × 6 in
